     The SLP74LVC125A consists of four non-inverting buffers/line drivers with 3-state outputs (nY) that are controlled by the output enable input (nOE(———) ).

    To ensure the high-impedance state during power up or power down, OE(———) should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

    Inputs can be driven from either 3.3V or 5V devices. When disabled, up to 5.5V can be applied to the outputs.


Main feature
  • Inputs accept Voltages to 5V

  • Operate from 1.2V to 3.6V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 500V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC125AEB SOP-14-225-1.27 74LVC125A Halogen free Tube
SLP74LVC125AEBTR SOP-14-225-1.27 74LVC125A Halogen free Tape & Reel
SLP74LVC125AJY TSSOP-14-225-0.65 LVC125A Halogen free Tube
SLP74LVC125AJYTR TSSOP-14-225-0.65 LVC125A Halogen free Tape & Reel

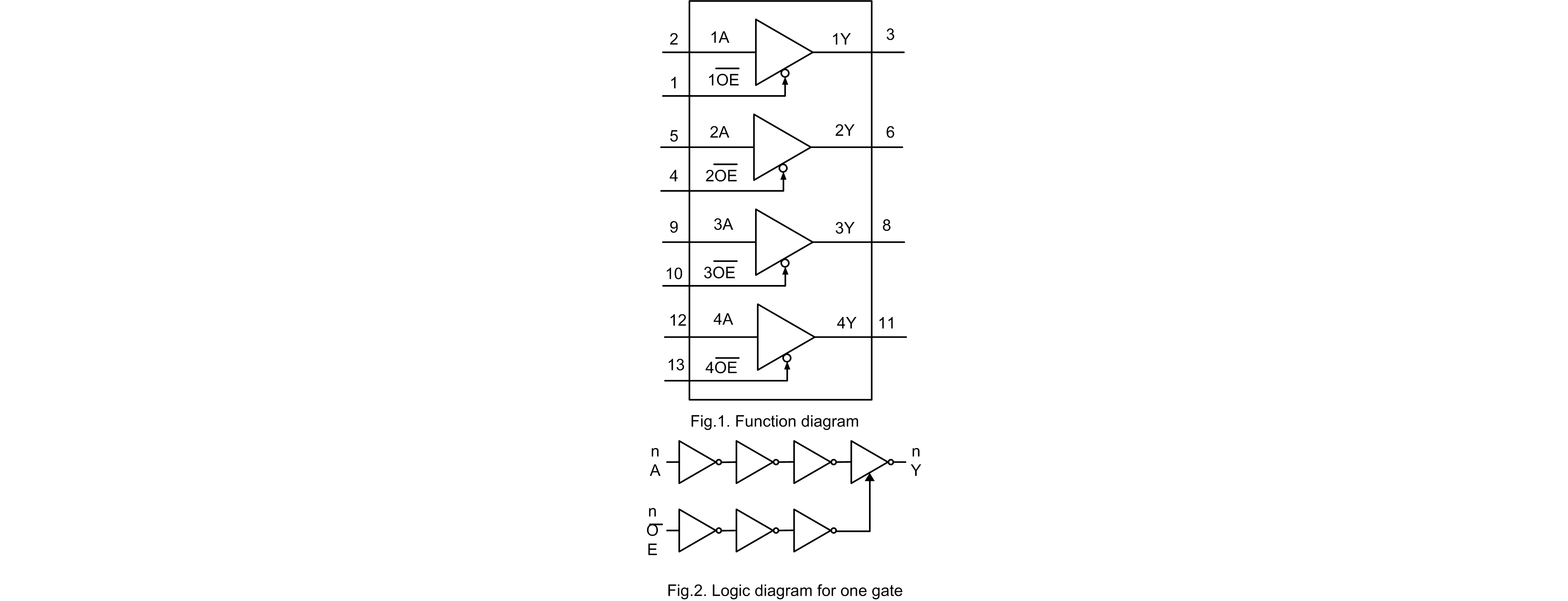

Block Diagram

SLP74LVC125A  英文.png
