         The SLP74LVC2G08 is a dual 2-input And Gate. The device is designed for 1.65V to 5.5V Vcc operation and performs the function Y=A∙B. The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.

    Main feature


    •  5V tolerant inputs for interlacing with 5V logic

    •  Wide supply voltage range from 1.65V to 5.5V

    •  CMOS low power consumption

    •  Direct interface with TTL levels

    •  ±24mA output driver (Vcc=3.0V)

    •  ESD protection:

    •   HBM exceeds 2000V

    •   CDM exceeds 1000V

    •  Latch up performance exceeds 250mA

    •  Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC2G08JWTR VSSOP-8-100-0.5 2G08 Halogen free Tape & Reel
    SLP74LVC2G08JW VSSOP-8-100-0.5 2G08 Halogen free Tube
    Block Diagram

                  Fig.1 Function diagram

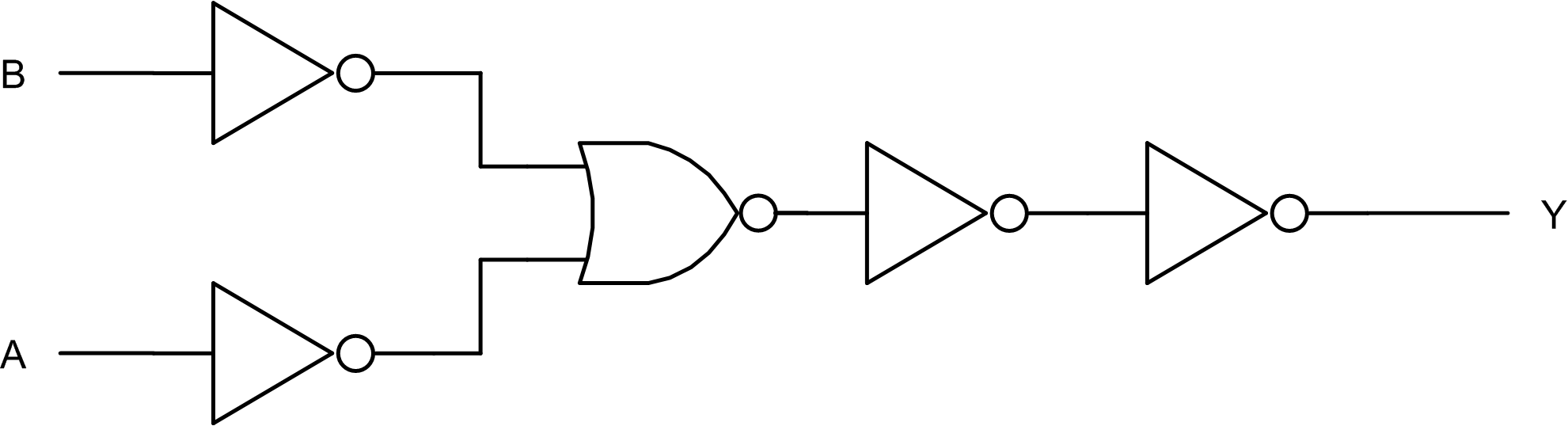

                         Fig.2 Logic diagram
